| Housing | Anodised aluminium |
| Image sensor / number of effective pixels | Vidicon tube 2/3" |
| Horizontal resolution | > 460 TV lines |
| Signalsysestem | PAL |
| Minimum illuminance | 5 Lux |
| Optical zoom | 3x |
| Digital zoom | N/a |
| Focus | Manual (motorised) |
| Viewpoint | --- |
| Minimum object distance | 50 mm (depending on system configuration) |
| Video output | BAS 1VPP @ 75 Ohm |
| Range - PAN | Infinite |
| Range - TILT | 300° (± 150°) |
| Lighting | 4x LED spots |
| Luminous flux | ~ 6,000 lm |
| Dimensions (LxBxø) | 266.5x117x142 mm |
| Weight | 3,5 kg |
| Operating temperature | --- |
| Waterproof / Water depth | 5 bar / 50 m |
| Radiation tolerance | 500,000 rad/h (5,000 Gy/h) |
| Total dose | 110 Mrad (1.1 MGy) |
| Accessories (optional) | --- |
| Features | Integrated detent coupling for PAN & TILT |
Inspection cameras

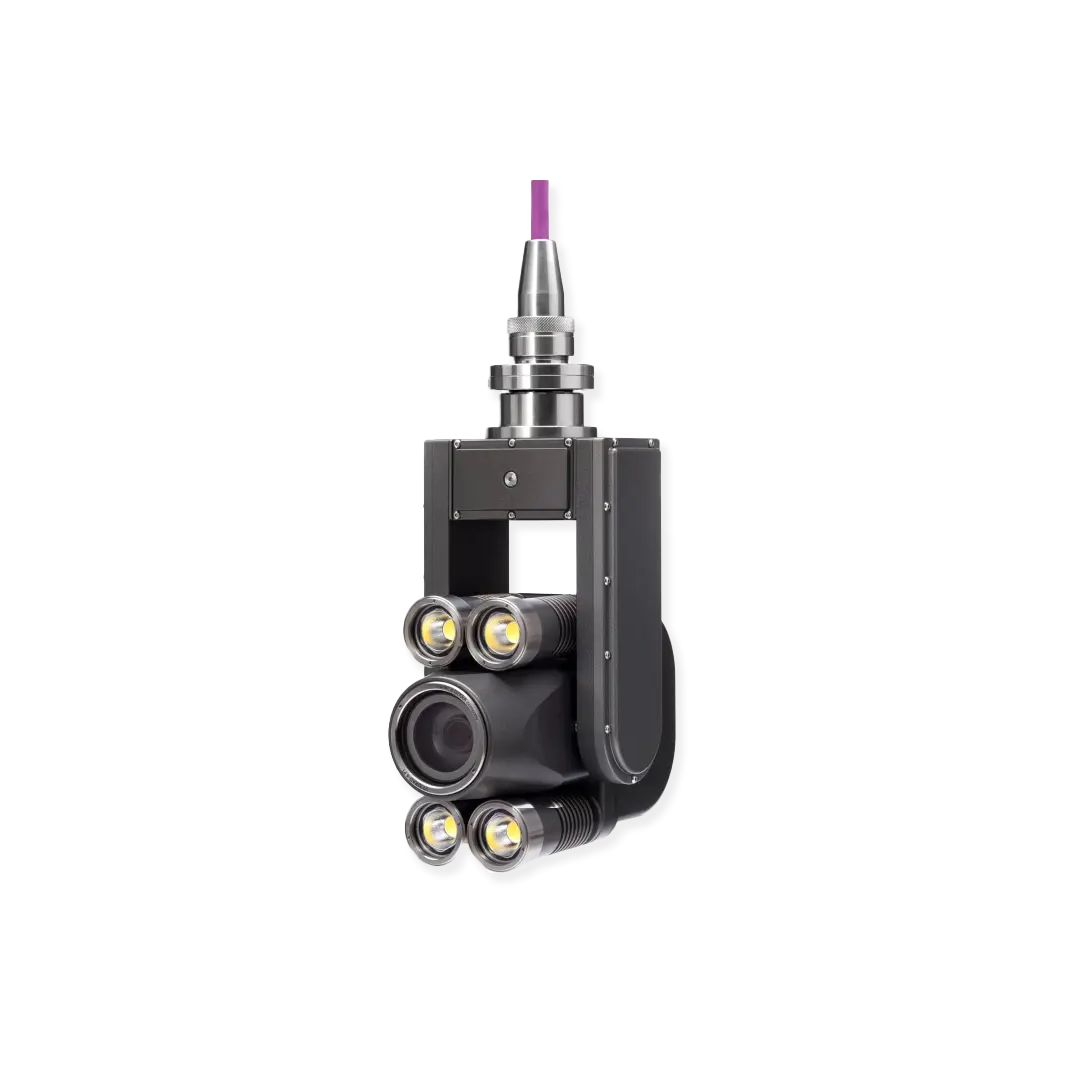

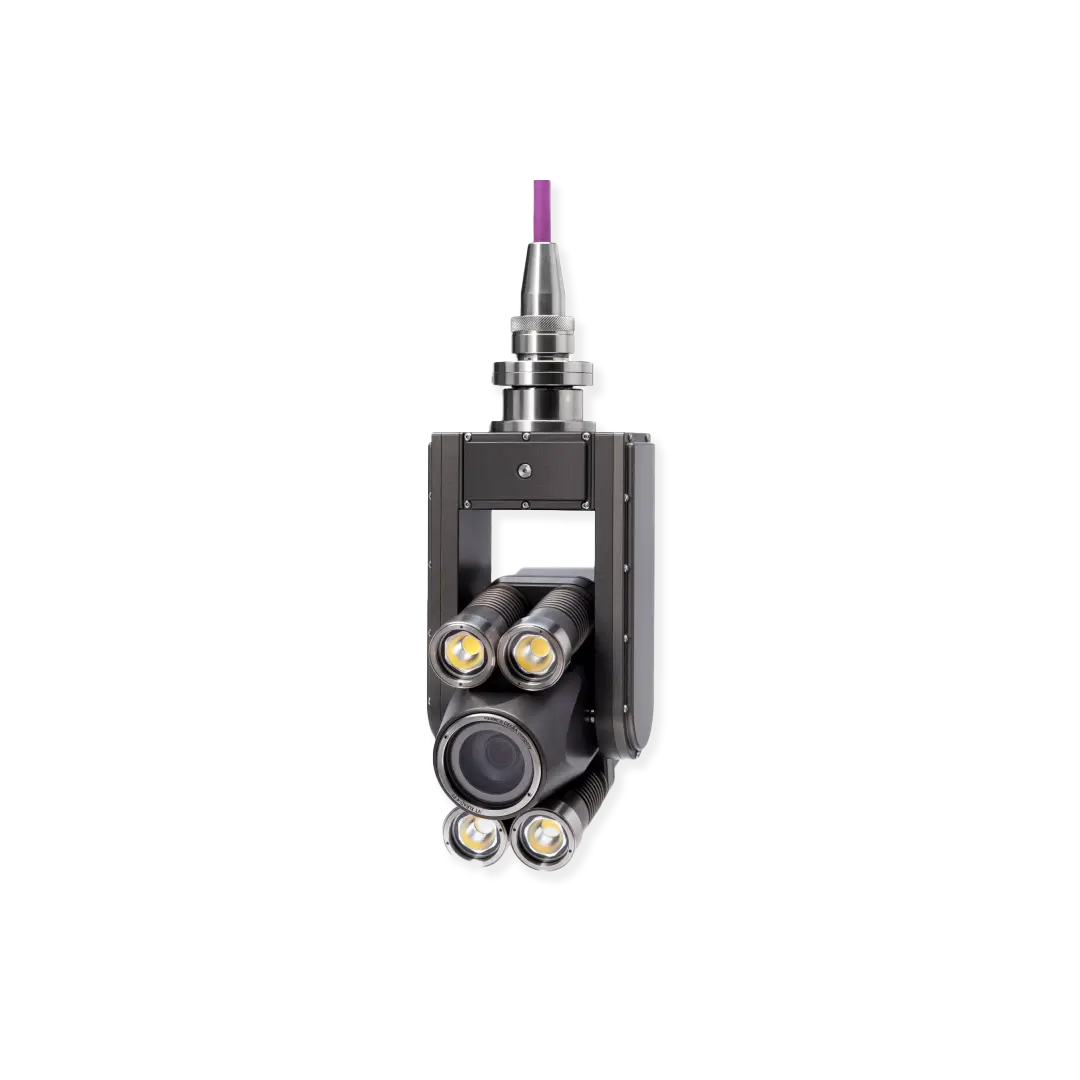

VT RAD-3 PTZC
Highest image quality in the nuclear sector, thanks to highly radiation-resistant pan-tilt inspection camera
- First-class results thanks to high resolution with non-browning zoom lens, 3x optical zoom and pan/tilt function
- Best working conditions, thanks to bright illumination of tanks, pipes or other objects by means of built-in LED lighting
- Suitable for use in the nuclear sector or under water due to the robust, waterproof housing and the highly radiation-resistant electronics
Product overview
For inspections in nuclear environments, you need the right equipment - especially for dark or hard-to-reach places. Our waterproof, highly radiation-resistant inspection camera offers optimal results, especially in high-risk areas, thanks to its robust construction and numerous features.
Key features
- Robust construction made of anodised aluminium
- PAN & TILT with snap-in coupling
- High radiation resistance
- Zoom lens 3x optical
- PAL signalling system
- Integrated LED lighting
- Waterproof up to 50 m
Documents
Areas of application
Nuclear inspections - e.g. reactor inspection
Application during decommissioning - e.g. pipe and tank inspections, reactor inspection/hot cells
